    Description

    Factory CBB15 CBB16 Inverter Welder Capacitor Metalized Film 40μf Capacitor 1250VDC

    Capacitor Features

    Low self-inductance/low loss/low ESR

    Operating current and high current handling capability

    Safety and long service life

    Easy to install and fasten

    Operating temperature: -25℃+75℃

    Storage temperature: -40℃+85℃

    Implementation standard: IEC61071

    Application

    The capacitors are used in the field of power electronics for straightening, bus-side high harmonic filtering, IGBT spike absorption protection, damping, clamping, etc.

    Process

    Media a thickened metalized film at the edge

    Shell a flame retardant ABS/PBT

    Internal one filled with epoxy resin

    Lead out a tinned copper electrode

    Cucab Capacitor Parameters

    CBB15/CBB16 Specific Dimensions

    Cn

    (μF)

    Un

    (V)

    Imax

    (A)

    dv/dt (V/μs) Ls

    (nH)

    U t-t

    (V)

    U t-c

    (V)

    tgδ

    (20℃,10kHz)

    Size

    (mm)

    CBB15
    0.47 1200VDC 7 1200 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 46×18×34
    1 1200VDC 15 1200 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 46×34×36
    2 1200VDC 25 1200 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 50×46×50
    3 1200VDC 35 1200 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 50×46×50
    30 1250VDC 30 200 ≤10 1800V, 10S 3000VAC,60S ≤100×10-4 74×46×49
    40 1250VDC 40 200 ≤10 1800V, 10S 3000VAC,60S ≤100×10-4 75×50×44
    CBB16
    2 500VAC 25 1200 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 ф63×49
    3 500VAC 35 1200 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 ф63×49
    4 500VAC 50 1200 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 ф63×49
    5 500VAC 60 1300 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 ф63×49
    6 500VAC 80 1400 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 ф76×49
    10 1400VDC 6 200 ≤10 1800V, 10S 3000VAC,60S ≤30×10-4 ф50×60
    20 1400VDC 10 200 ≤10 1800V, 10S 3000VAC,60S ≤50×10-4 ф50×60
    50 350VDC 14 200 ≤10 600V, 10S 3000VAC,60S ≤55×10-4 ф50×60
    40 800VDC 10 200 ≤10 1200V, 10S 3000VAC,60S ≤30×10-4 ф40×60
    60 800VDC 15 200 ≤10 1200V, 10S 3000VAC,60S ≤30×10-4 ф50×60
    100 800VDC 28 200 ≤10 1200V, 10S 3000VAC,60S ≤30×10-4 ф62×60
    200 800VDC 26 200 ≤10 1200V, 10S 3000VAC,60S ≤30×10-4 ф60×110

    Note: 1. Other capacity and size series can be agreed according to user needs.

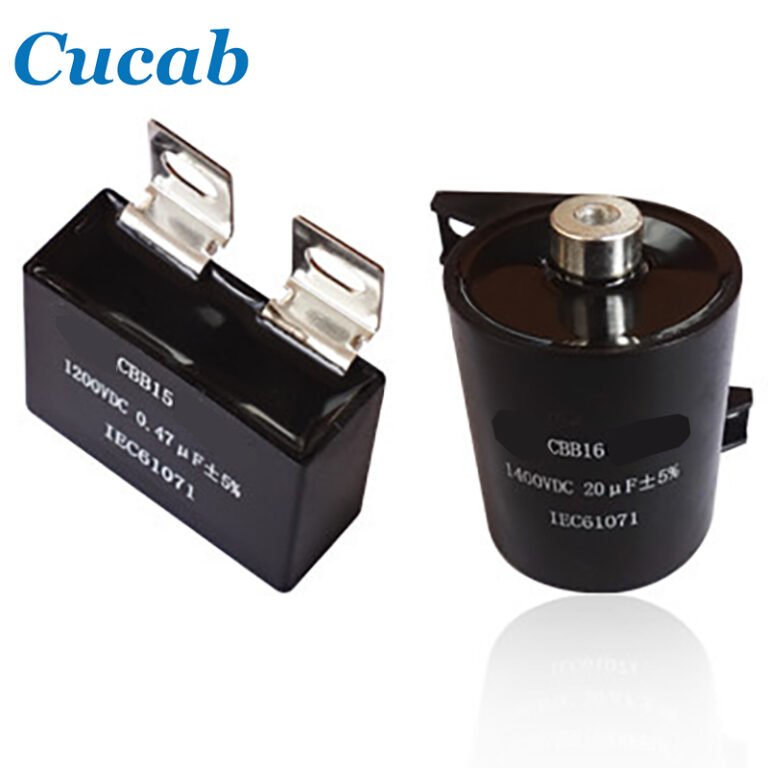

    CBB15 CBB16 Inverter Welder Capacitor Metalized Film 40μf Capacitor 1250VDC

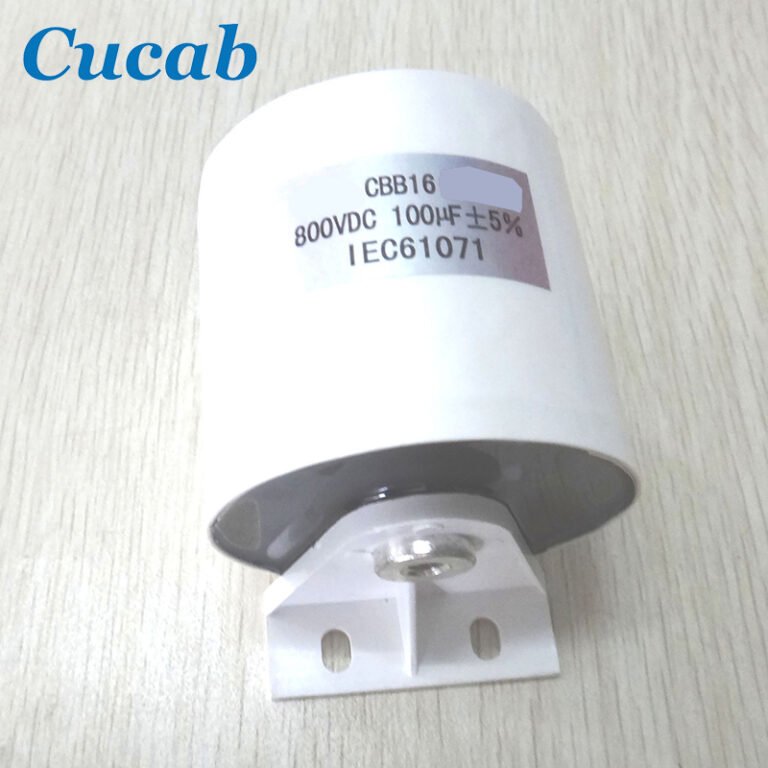

    CBB15 CBB16 Inverter Welder Capacitor Metalized Film 40μf Capacitor 1250VDC
